GSX MILL VL Hard

Vibration suppression

  • Controls chattering vibration with unequal spacing of teeth and variable leads

Excellent durability

  • Improves chip evacuation and stiffness with flute geometry optimized for high-hardness materials

Long tool life

  • Features heat-resistant carbide materials and GSX II coating for a longer tool life

Work material

  • Suitable for finishing hardened steels difficult to machine with general-purpose end mills

Lineup

  • Ø6-Ø20 (6 sizes)

Unequal spacing of teeth and variable leads

Features unequal spacing of teeth and variable leads that control chattering vibration and
flute geometry optimized for high-hardness materials with enhanced chip evacuation and stiffness

Applicable work materials

Low-carbon steels
Soft steels

SS400, S10CCarbon steels
Alloy steels

S45C, SCM440Pre-hardened steels
High alloy steels

SUJ, NAKTempered steels
SKD, SKHHardened steels
Hardened Steels 150HB 225HB 275HB30  40HRC40  50HRC50  65HRC

Stainless steels

SUS304

Heat-resistant alloy

Ti/Ni Alloys

Cast iron

FC/FCD

Aluminum alloy

AC/ADC

Copper/copper alloy

Cu

Graphite

Graphite



: optimal : applicable ×: not applicable No mark: not recommended

GSX II coating

  • Achieves excellent heat resistance with enhanced oxidation resistance and heat dissipation
  • Features a new layered structure for high hardness
  • Optimizes the crystal structure of the film for increased resistance to wear and adhesion

Heat resistance far superior to competitors

Oxidation resistance evaluation (calo test crater after being held for 1 hour in the atmosphere at 1,100°C)

Coating (oxidation resistance temperature) Calo test crater
GSX II coating
1,100°C
Company A C coating
1,200°C (Company A’s listed value)
Company B D coating
1,300°C (Company B’s listed value)

Oxidation resistance tests conducted under NACHI standards showed GSX II coating limits oxidation to 0.3µm from the surface, whereas coating products of competitors resulted in
total oxidation of the coating layer.

Enhanced durability and stable machining

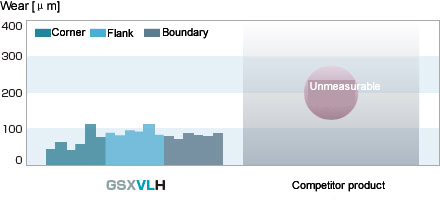

Comparison of wear after side milling 70m with SKD11 (60HRC)

Conditions
Tool : GSXVLH Ø10
Speed : 70m/min
Feed : 900m/min
0.07mm/tooth
Depth of cut : ap10 mm ae0.1
Material : SKD11 (60HRC)
Coolant : Air blow
Cutting length : 70m
Competitor products

Chipping occurs frequently

GSXVLH

GSXVLH shows normal wear and can be used continually
